High performance NDIR Gas Sensor Module
High-performance NDIR, MFIR, is a High Performance Gas Sensor Module for more precise selective detection than conventional sensors,
using a Non-dispersive embedded abselection (NDIR) scheme
NDIR Gas Sensor
NDIR consists of 2CH, 4CH and 8CH, can be equipped with NDIR Filter,
and is a high-performance Gas NDIR Sensor Platform
suitable for gas measurement.

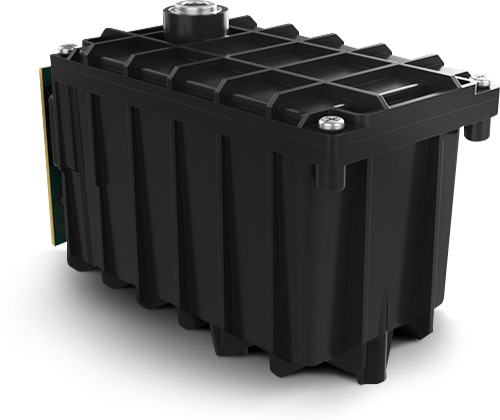

| Model | CFIR (2CH) |
|---|---|
| Dimension | 50 mm X 60mm X 90 mm |
| Output Voltage Resolution (Input Voltage) | 24 - 50 V DC or POE |
| Linearity | ±10 % of measuring range |
| Warm Up Time | <30 Secs |
| Operating Temperature | 15°C to +35°C (32°F to 104°F) |
| Humidity | 15 - 90% RH (non-condensing) |
| Life Time | 5 years or longer |
|
Target Gas Measuring Ranges Resolution |
COS
20 ppm
1 ppm
C4F6
100 ppm
1 ppm
NF3
50 ppm
1 ppm
CH3F
500 ppm
10 ppm
|
| Model | MCIR (4CH, 8CH) |
|---|---|
| Dimension | 50 mm X 60mm X 90 mm |
| Output Voltage Resolution (Input Voltage) | 12 - 24 V DC |
| Linearity | ±10 % of measuring range |
| Warm Up Time | <30 Secs |
| Operating Temperature | 15°C to +35°C (32°F to 104°F) |
| Humidity | 15 - 90% RH (non-condensing) |
| Life Time | 5 years or longer |
|
Target Gas Measuring Ranges Resolution |
IPA
1000 ppm
1 ppm
COS
100 ppm
1 ppm
C4F6
200 ppm
1 ppm
FC-3283
100 ppm
1 ppm
CH2F2
1000 ppm
1 ppm
CH3F
1000 ppm
1 ppm
R-134a
(C2H2F4) 2000 ppm 2 ppm |
SCIR Gas Sensor
SCIR consists of 2CH and 4CH, can be equipped with 4 NDIR Filters,
and is a high-performance horizontal Gas NDIR Sensor Platform
suitable for up to 4 gas measurements.

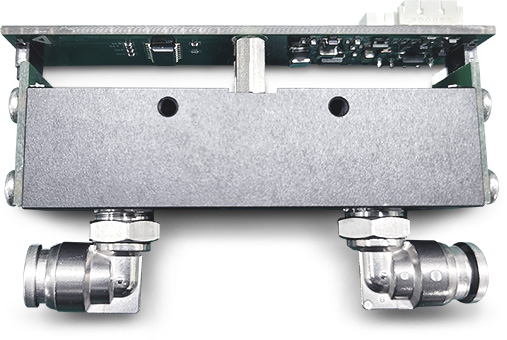

| Model | Straight Type IR Sensor (2CH) |
|---|---|
| Dimension | 55 mm X 103 mm X 25.5 mm |
| Output Voltage Resolution (Input Voltage) | 12 - 24 V DC |
| Linearity | ±15 % of measuring range |
| Warm Up Time | <30 Secs |
| Operating Temperature | 5°C ~ 25°C |
| Humidity | 15 - 90% RH (non-condensing) |
| Life Time | 5 years or longer |
|
Target Gas Measuring Ranges Resolution |
C3H8
10000 ppm
10 ppm
FC-3283
500 ppm
3 ppm
C4F6
1000 ppm
4 ppm
|

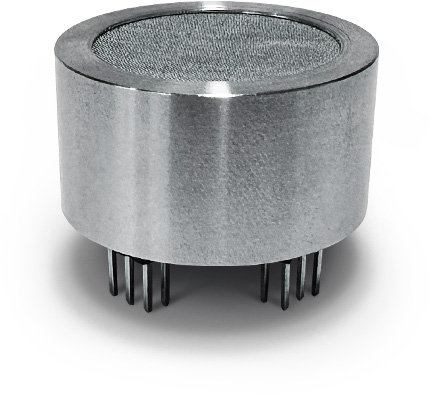

RIR Gas Sensor
The RIR consists of 2CH, can be equipped with two NDIR Filters,
and is a high-performance circular Gas NDIR Sensor Platform
suitable for up to two gas measurements.
| Model | Straight Type IR Sensor (2CH) |
|---|---|
| Dimension | 47 mm X 46.5 mm X 72.6 mm |
| Output Voltage Resolution (Input Voltage) | 12 - 24 V DC |
| Linearity | ±20 % of measuring range |
| Warm Up Time | <30 Secs |
| Operating Temperature | 5°C ~ 25°C |
| Humidity | 15 - 90% RH (non-condensing) |
| Life Time | 5 years or longer |
|
Target Gas Measuring Ranges Resolution |
FC-3283
500 ppm
1 ppm
CF4
1000 ppm
1 ppm
|
